SCHEIDT SYSTEM BE

Walk-in Stations, Element construction without basement

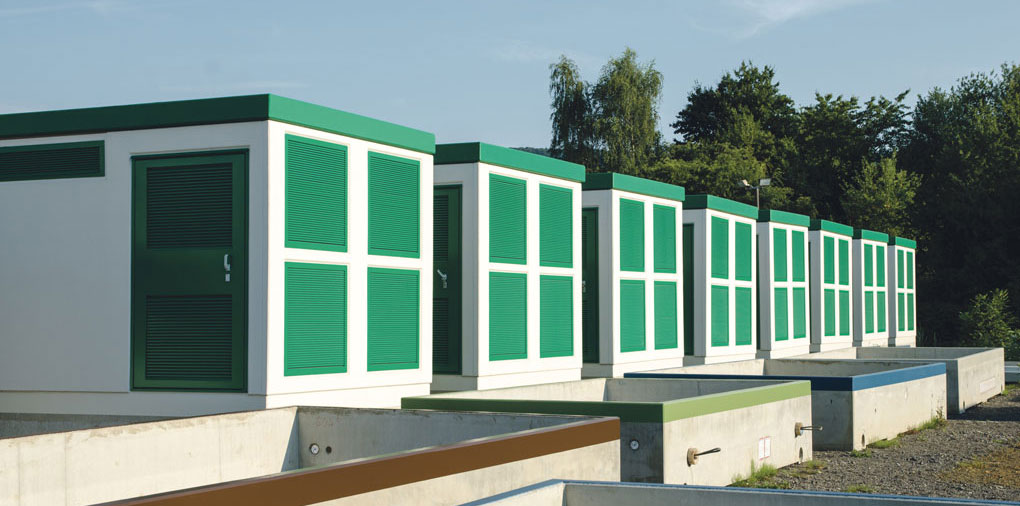

Flexible production sizes and a wide range of applications characterise the SCHEIDT SYSTEM BEK, BE. The BEK (with basement) and BE (without basement) walk-in transformer stations are prefabricated reinforced concrete buildings that leave nothing to be desired. They offer sufficient space to accommodate switchgear, transformers, metering and measuring equipment, for example. Turnkey.

Data on Scheidt System BE

Structure and design

Reinforced concrete elements: Compressive strength class C35/45
The equipment components are operated/maintained in the dry, regardless of the weather

Roof

Separate cassette roof
Placed on elastomeric bearings (to avoid thermal stresses on walls)
UV-resistant, air-permeable filter foam (roof/wall sealing, under-roof ventilation)
Guidance against lateral displacement (pressure relief in the event of an arc fault)
If required: fixed roof/structure connection
External drainage of roof cassette: via downpipe

Walls

Individually manufactured
With intermediate concrete floor, welded for protection in accordance with static specifications

Options and equipment

Adjustable transformer rails made of galvanised steel
Different door and ventilation grille sizes
Provided natural ventilation, if required: forced ventilation (wall/roof ventilator)
Oil collection surface with additional oil-resistant coating
Sealing of the basin with WHG-approved system
Sealing systems from various certified manufacturers (for cable and pipe penetration)
